COCKPIT
RE 2000 - J20 - Héja
1 - Pezzani compass, mod. 02
2 - Climb indicator
3 - 10000 meters altimeter
4 - Pyrometric indicator
5 - Pyrometric turnover switch
6 - Gasoline injector
7 - Engine starting button
8 - Start cock
9 - Brake and starting bottle air pressure gauge
10 - Clock
11 - Auxiliary air speed indicator
12 - Revolutions counter
13 - Manifold pressure gauge
14 - Dual telethermometer for oil
15 - Fuel pressure gauge
16 - Landing gear switch
- ( Directional gyro indicator on Re.2000 G.A.)
2 - Climb indicator
3 - 10000 meters altimeter
4 - Pyrometric indicator
5 - Pyrometric turnover switch
6 - Gasoline injector
7 - Engine starting button
8 - Start cock
9 - Brake and starting bottle air pressure gauge
10 - Clock
11 - Auxiliary air speed indicator
12 - Revolutions counter
13 - Manifold pressure gauge
14 - Dual telethermometer for oil
15 - Fuel pressure gauge
16 - Landing gear switch
- ( Directional gyro indicator on Re.2000 G.A.)
17 - Magneto turnover switch
18 - Oil pressure gauge
19 - Landing gear indicator
20 - Switch for air speed indicator tube
21 - Engine stop control
22 - Machine guns round counter
23 - Turn and bank indicator
24 - Quick release sliding roof pilot's cockpit
25 - Arms synchronizing clutch
26 - 560 km/h air speed indicator
27 - S. Giorgio telescopic gun sight
28 - Cockpit ventilation door control
29 - Fire alarm
30 - Oil cooler regulator
31 - Tail wheel release handle
32 - Hot air control handle
18 - Oil pressure gauge
19 - Landing gear indicator
20 - Switch for air speed indicator tube
21 - Engine stop control
22 - Machine guns round counter
23 - Turn and bank indicator
24 - Quick release sliding roof pilot's cockpit
25 - Arms synchronizing clutch
26 - 560 km/h air speed indicator
27 - S. Giorgio telescopic gun sight
28 - Cockpit ventilation door control
29 - Fire alarm
30 - Oil cooler regulator
31 - Tail wheel release handle
32 - Hot air control handle
33 - (not shown in picture but placed on the bottom in front of the stick) undercarriage indicator

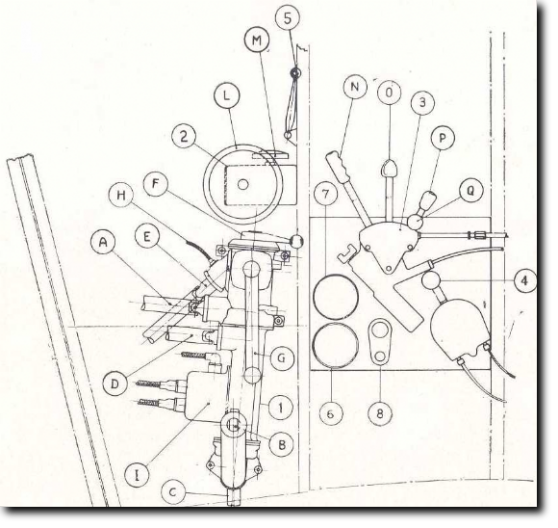

Left side
1 - Landing gear and flaps control box, including:
1 - Landing gear and flaps control box, including:
a - Electric motor transmission
b - Right half landing gear transmission
c - Left half landing gear transmission
d - Tail wheel transmission
e - Flap transmission
f - Turnover switch
g - Manual control handle
h - Flaps indicator flexible transmission
i - Landing gear limit switch
2 - Trimming tabs control box on which are mounted: l - Hand-wheel for elevator tabs control and
m - Handle for rudder tabs control
3 - Four engine control handles, i.e.: n - Gas control handle
o - Propeller control handle
p - High altitude control handle
q - +100 control handle
5 - Fire extinguisher control handle
6 - Auxiliary fuel tanks level indicator
7 - Main tank fuel level indicator
8 - Dimmer for "S. Giorgio" sight
6 - Auxiliary fuel tanks level indicator
7 - Main tank fuel level indicator
8 - Dimmer for "S. Giorgio" sight
Right side
1 - Electric plant main switch control
2 - Light system panel
3 - Voltmeter
4 - Ammeter
5 - Fuse box with fuses
6 - Generator exciter switch
7 - Radio receiving and transmission set
8 - Oxygen respirator panel
9 - Oxygen respirator plug socket
10 - Signal horn for landing gear extension
11 - Engine cooling flaps control pump levers
12 - Position lights and tail light switch
13 - Intermittence device switch
14 - Signal light push button
15 - Radio loud speaker
16 - Ring for parachute cable
1 - Electric plant main switch control
2 - Light system panel
3 - Voltmeter
4 - Ammeter
5 - Fuse box with fuses
6 - Generator exciter switch
7 - Radio receiving and transmission set
8 - Oxygen respirator panel
9 - Oxygen respirator plug socket
10 - Signal horn for landing gear extension
11 - Engine cooling flaps control pump levers
12 - Position lights and tail light switch
13 - Intermittence device switch
14 - Signal light push button
15 - Radio loud speaker
16 - Ring for parachute cable
RE 2000 G.A.
RE 2000 Cat.
In red, external load control panel is shown
