WING
The wing is similar to the one of Re.2000 and it's a metallic and cantilever wing.
It's composed by 5 parts:
- central section
- 2 half wings
- 2 wing tips
In more detail:

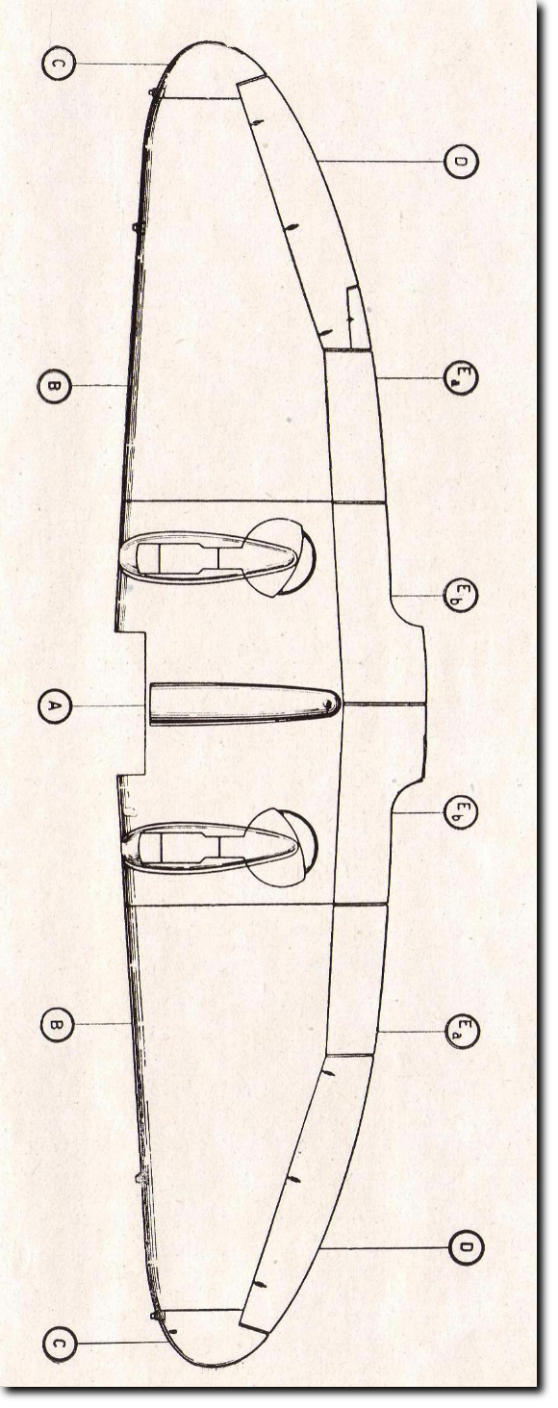

A - Central section
B - Half wings
C - Wing tips
D - Ailerons
E - Flaps
Note landing gear resting position (round details) and coolant and oil radiators (squared details)
- central section
- 2 half wings
- 2 wing tips
In more detail:
A - Central section
B - Half wings
C - Wing tips
D - Ailerons
E - Flaps
Note landing gear resting position (round details) and coolant and oil radiators (squared details)
The wing is composed by:
- 4 wing spars (5 for prototypes)
- metal sheet wing ribs sections with holes for weight reduction
- wing top surface stiffened by corrugated metal sheet
- wing bottom surface stiffened by curled-stringers
The wing planform is elliptical (actually almost-elliptical) and:
- airfoil thickness is decreasing from centerline to tip
- biconvex asymmetric airfoils
- 4 wing spars (5 for prototypes)
- metal sheet wing ribs sections with holes for weight reduction
- wing top surface stiffened by corrugated metal sheet
- wing bottom surface stiffened by curled-stringers
The wing planform is elliptical (actually almost-elliptical) and:
- airfoil thickness is decreasing from centerline to tip
- biconvex asymmetric airfoils
Central section of the wing of RE 2002

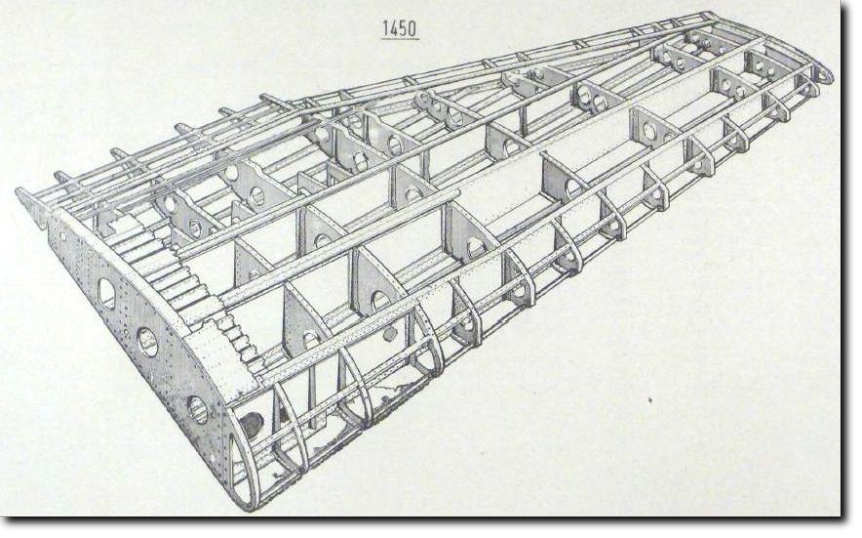

Half wing of RE 2002
